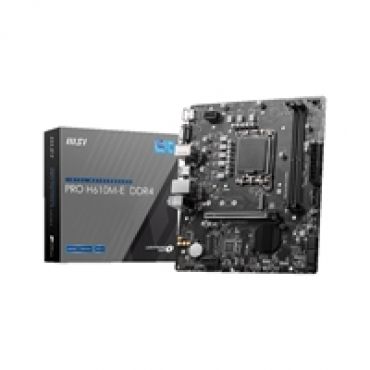

PRO H610M-E DDR4, mATX-emolevy

Kuvaus

Tekniset tiedot : Prosessorituki :Tukee 12./13. sukupolven Intel Core, Pentium Gold ja Celeron -prosessorejaLGA1700 Piirisarja :Intel H610 Muistituki :2 x DDR4 DIMM, maks. 64GBDual Channel -muistiarkkitehtuuriSupports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Audio :Realtek® ALC897 Codec Verkkokortti :1x Realtek® RTL8111H 1Gbps LAN controller Laajennuspaikat :1x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset)Supports PCIe 3.0 x1 Liitännät (sisäiset) :4x SATA 6Gb/s ports (From H610 chipset)1x M.2 slot (Key M) (from CPU)Supports up to PCIe 3.0 x4Supports 2242/ 2260/ 2280 storage devices 1x 24-pin ATX main power connector1x 8-pin +12V power connector1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)2x USB 2.0 Type-A connectors (From Hub-GL850G)1x 4-pin CPU fan connector2x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion

ominaisuudet
