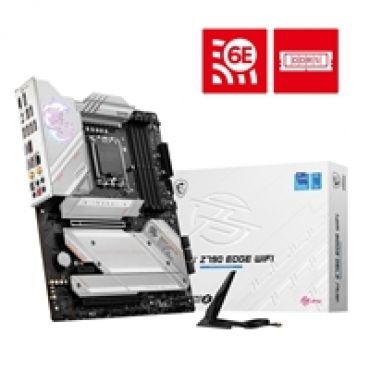

MPG Z790 EDGE WIFI, ATX-emolevy

Kuvaus

Tekniset tiedot : Prosessorituki :LGA1700 kantaTukee 12./13. sukupolven Intel Core, Pentium Gold ja Celeron -prosessoreja Piirisarja :Intel Z790 Muisti :4 x DDR5, maks. 128GBDual Channel -muistiarkkitehtuuriTukee: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHz Audio :Realtek® ALC4080 Codec Verkkokortti :Intel® 2.5Gbps LAN WLAN & Bluetooth :Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA Laajennuspaikat :2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports

ominaisuudet
